KOCH Stockpile reclaimers offer high reclaim capacities of up to 20,000 tph (22,000 stph), combining reliable technology with automated control systems for optimal performance and operational efficiency across multiple available configurations.
Easy and efficient stockpile reclaiming
Quick and efficient reclaiming of bulk materials from stockpiles is made easy with our advanced Stock Pile Reclaimers. We offer a comprehensive range of machines including:
-
Bucket wheel reclaimers (boom-type and bridge-type)
-
Scraper reclaimers (bridge-type, portal, and side scrapers)
-
Drum-type reclaimers
Depending on your application, these machines can be standardised or custom-built. They offer reclaim capacities of up to 20,000 tph (22,000 stph). Your optimal design depends on factors such as:
-
Size and shape of the stockpile
-
Material characteristics
-
Desired reclaim rate
-
Blending and homogenization requirements
Types of Stock Pile Reclaimers

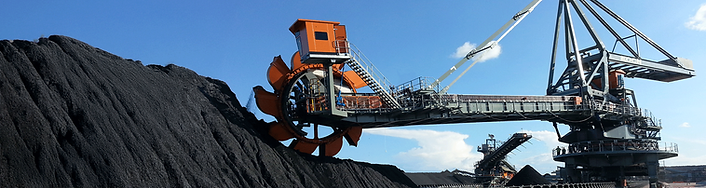

Bucket Wheel Boom Reclaimers
Ideal for handling large volumes of bulk material.
-
Pylon-type: For low- to medium-density applications
-
Rocker-type: Minimizes center of gravity movement, allowing for higher capacities
These reclaimers feature luffing, slewing, and long-travel capabilities. The bucket wheel rotates to dig material from the stockpile, ensuring continuous and reliable reclaiming.
Bridge-Type Bucket Wheel Reclaimers
Best suited for wide stockpiles requiring high blending efficiency.
-
Optional second bucket wheel enables dual operation
-
Recommended for homogenization-intensive applications
Bridge-Type Scraper Reclaimers
Oscillating rakes feed material evenly to circumferential scraper blades located below the bridge frame.
-
Ensures consistent blending and homogenization
-
Automated operation for optimal performance
Portal Scraper Reclaimers
Cost-effective, rail-mounted systems using a bucket chain mechanism.
-
Ideal for large stockpiles where homogenization is not critical
-
Semi-portal units minimize hall dimensions for smaller volumes
-
Full-portal units feature divided scraping arms for flexibility
-
Can travel over stockpile to reclaim different sections
Side Scraper Reclaimers
Available in two types:
-
Longitudinal: Inline stockpiles, up to 1,000 tph (1,100 stph)
-
Circular: Versatile buffer storage, up to 1,500 tph (1,650 stph)
While one pile is built via cone shell stacking, another can be reclaimed simultaneously.
Drum-Type Reclaimers
A high-performance solution using a rotating drum with reclaim buckets and a harrow feeding system.
-
Reclaiming capacity up to 8,000 tph (8,800 stph)
-
Ideal for applications requiring high homogenization
-
Effective alternative to single- or double-bridge bucket wheel reclaimers
